PXN6R7
图像仅供参考
请参阅产品规格
PXN6R7
-
商品编号:
PXN6R7-30QLJ
-
简述:
30QL - 30 V, N-channel Trench MOSFET
-
描述:

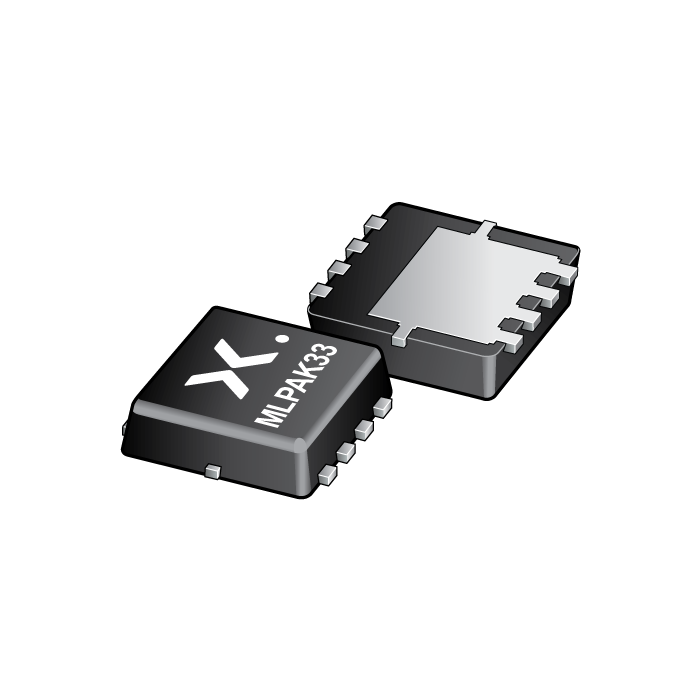

N-channel enhancement mode Field-Effect Transistor (FET) in an MLPAK33 (SOT8002) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
- 数据手册:
库存: 1953000
特性
Logic-level compatible
Trench MOSFET technology
Ultra low QG and QGD for high system efficiency, especially at higher switching frequencies
Superfast switching with soft-recovery
Low spiking and ringing for low EMI designs
MLPAK33 package (3.3 x 3.3 mm footprint)
目标应用
DC to DC conversion
Battery management
Low-side load switch
Switching circuits
数据手册
