PXN2R9

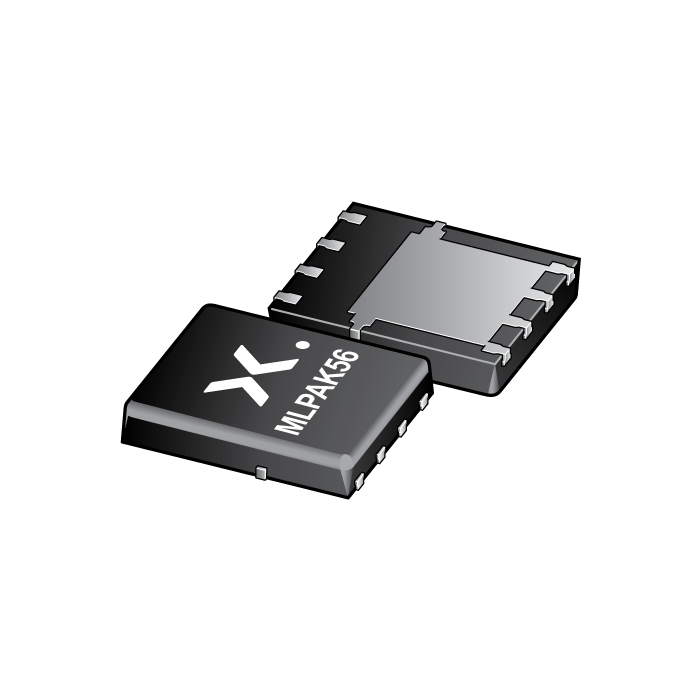

图像仅供参考
请参阅产品规格
PXN2R9
-
商品编号:
PXN2R9-100RSJ
-
简述:
N-channel 100 V, 2.9 mOhm, standard level Trench MOSFET in MLPAK56
-
描述:
General purpose MOSFET for standard applications, 180 A, standard level N-channel enhancement mode Power MOSFET in MLPAK56 package.
- 数据手册:
库存: 0
特性
Standard level compatibility
Trench MOSFET technology
Thermally efficient package in a small form factor (5.15 mm x 6.15 mm footprint)
目标应用
Secondary side synchronous rectification
DC-to-DC converters
Home appliance
Motor drive
Load switching
LED lighting
E-bike
数据手册
