PSMN3R9
图像仅供参考
请参阅产品规格
PSMN3R9
-
商品编号:
PSMN3R9-100YSFX
-
简述:

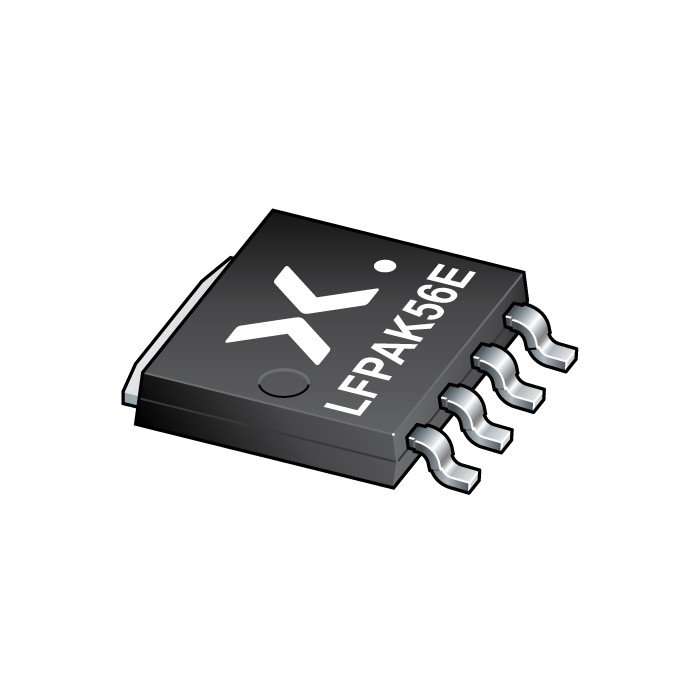

100YSF - NextPower 100 V, 4.3 mOhm, 120 A, N-channel MOSFET in LFPAK56E package
-
描述:
NextPower 100 V, standard level gate drive MOSFET. Qualified to 175 °C and recommended for industrial and consumer applications.
- 数据手册:
库存: 99999999
特性
Low Qrr for higher efficiency and lower spiking
120 A ID (max) – demonstrated continuous current rating
Low QG × RDSon FOM for high efficiency switching applications
Strong avalanche energy rating (Eas)
Avalanche rated and 100% tested
Ha-free and RoHS compliant LFPAK56E package
目标应用
Synchronous rectifier in AC-DC and DC-DC
Primary side switch – 48 V DC-DC
BLDC motor control
USB-PD adapters
Full-bridge and half-bridge applications
Flyback and resonant topologies
数据手册
