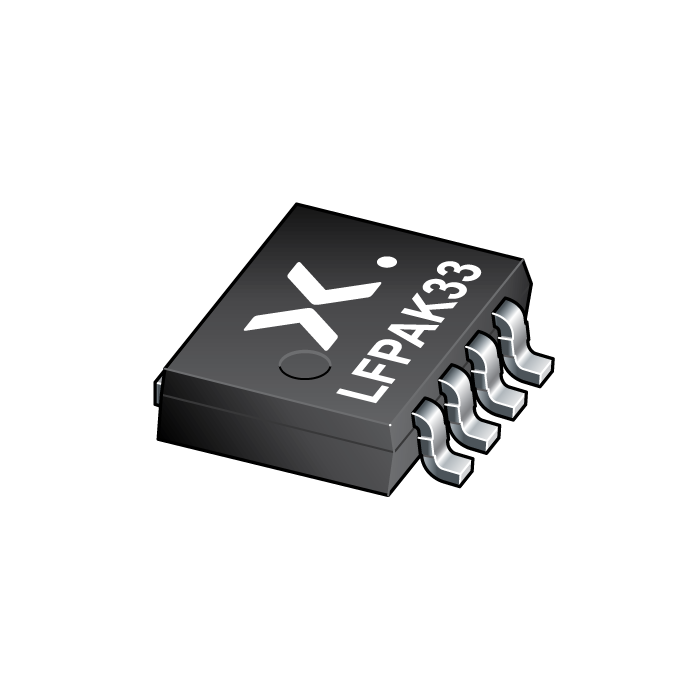

图像仅供参考
请参阅产品规格
-
商品编号:
PSMN1R8-30MLHX
-
简述:
30MLH - N-channel 30 V, 2.1 mΩ, 150 A logic level MOSFET in LFPAK33 using NextPowerS3 technology
-
描述:
Logic level gate drive N-channel enhancement mode MOSFET in LFPAK33 package. NextPowerS3 technology delivers low RDSon, low IDSS leakage and high efficiency. Rated to 150 A and optimizedwith low gate resistance (RG) for fast-switching applications.
- 数据手册:
特性
Optimized for low RDSon and low gate resistance (RG)
Fast switching – reduced switching losses
Strong linear-mode (SOA) rating
Low leakage < 1 μA at 25 °C
Low spiking and ringing for low EMI designs
Optimized for 4.5 V gate drive
150 A continuous ID(max) rating
High reliability copper-clip bonded and solder die attach LFPAK33 package
Qualified to 175 °C
Exposed leads for optimal visual solder inspection
目标应用
Synchronous buck regulator
Synchronous rectifier in AC-DC and DC-DC applications
BLDC (brushless) motor control
eFuse and battery protection
