PSMN040
图像仅供参考
请参阅产品规格
PSMN040
-
商品编号:
PSMN040-100MSEX
-
简述:

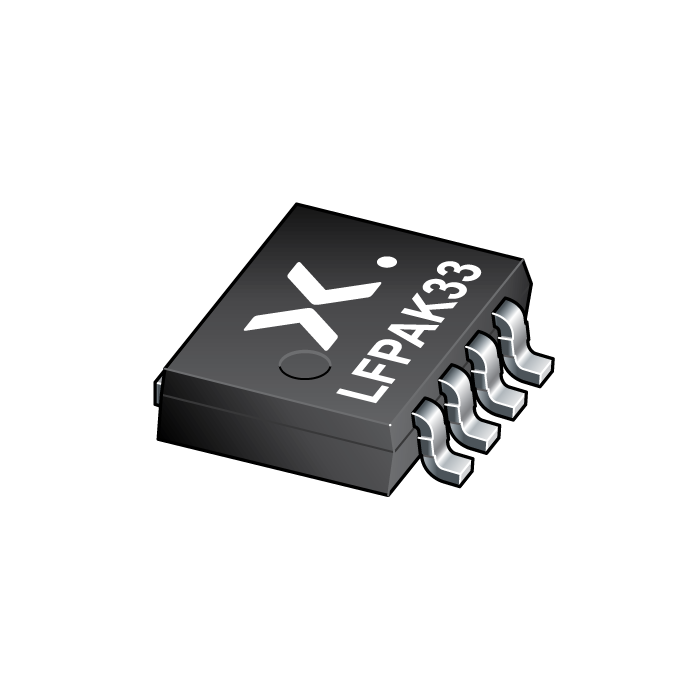

100MSE - N-channel 100 V 36.6 mΩ standard level MOSFET in LFPAK33 designed specifically for high power PoE applications
-
描述:
New standards and proprietary approaches are enabling Power-over-Ethernet (PoE) systems capable of delivering up to 90W to each powered device (PD). Such solutions place increased demands on the power sourcing equipment (PSE) in terms of “soft-start”, thermal management and power density requirements.
- 数据手册:
库存: 99999999
特性
Enhanced forward biased safe operating area for superior linear mode operation
Low Rdson for low conduction losses
Ultra reliable LFPAK33 package for superior thermal and ruggedness performance
Very low IDSS
目标应用
High power PoE applications (60W and higher)
IEEE802.3at and proprietary solutions
数据手册
