PNE20010EXD
图像仅供参考
请参阅产品规格
PNE20010EXD
-
商品编号:
PNE20010EXDX
-
简述:
200 V, 1 A hyperfast recovery rectifier
-
描述:

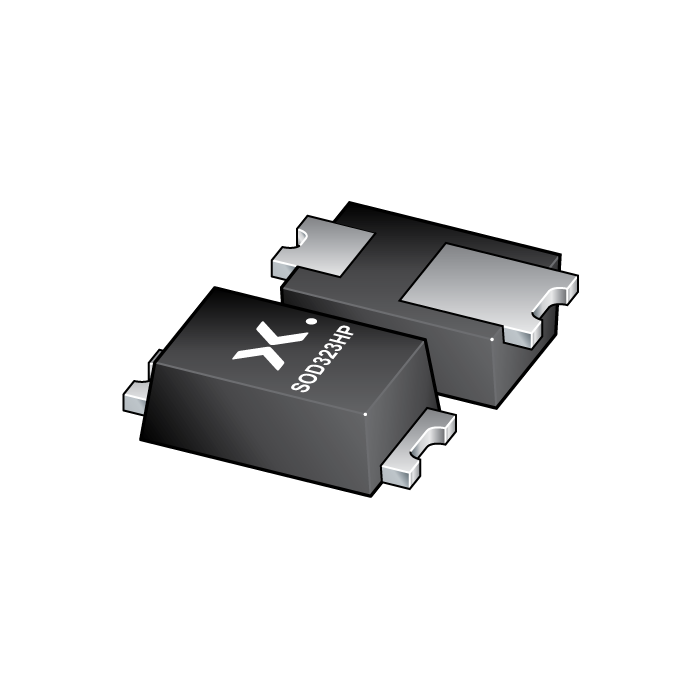

High power density, hyperfast recovery rectifier with high-efficiency planar technology, encapsulated in a CFP2-HP (SOD323HP) power and flat lead Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 99999999
特性
Reverse voltage: VR ≤ 200 V
Forward current: IF ≤ 1 A
Hyperfast recovery time: trr ≤ 25 ns
Planar die design with Pt doped life time control
Low inductance
Small and flat lead SMD plastic package, typical height 0.68 mm
High power capability due to clip-bond technology
目标应用
General-purpose rectification
Reverse polarity protection
Hyperfast switching
Freewheeling applications
