PHY1440DLX
-
商品编号:
PHY1440DLX
-
简述:

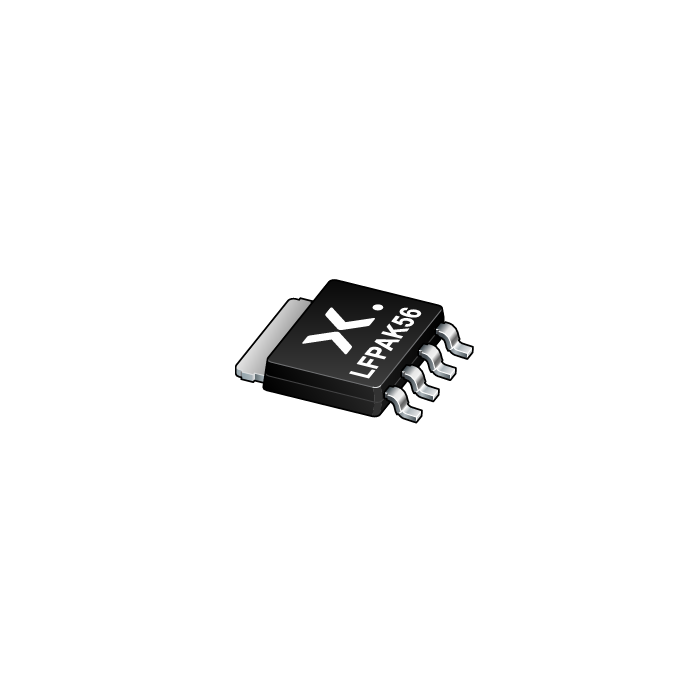

N-channel 40 V, 1.4 mΩ, 240 A logic level MOSFET in LFPAK56
-
描述:
240 Amp, logic level gate drive N-channel enhancement mode MOSFET in 175 °C LFPAK56 package using advanced TrenchMOS Superjunction technology. This product has been designed and qualified for high performance power switching applications
- 数据手册:
库存: 8000000
特性
- 240 A capability
- Avalanche rated, 100% tested at IAS = 190 A
- NextPower-S3 technology delivers 'superfast switching with soft recovery'
- Low QRR, QG and QGD for high system efficiency and low EMI designs
- Schottky-Plus body-diode, gives soft switching without the associated high IDSS leakage
- Optimised for 4.5 V gate drive utilising NextPower-S3 Superjunction technology
- High reliability LFPAK (Power SO8) package, copper-clip, solder die attach and qualified to
- 175 °C
- Exposed leads can be wave soldered, visual solder joint inspection and high quality solder
- joints
- Low parasitic inductance and resistance
目标应用
- Synchronous rectification
- DC-to-DC converters
- High performance & high efficiency server power supply
- Motor control
- Power OR-ing
