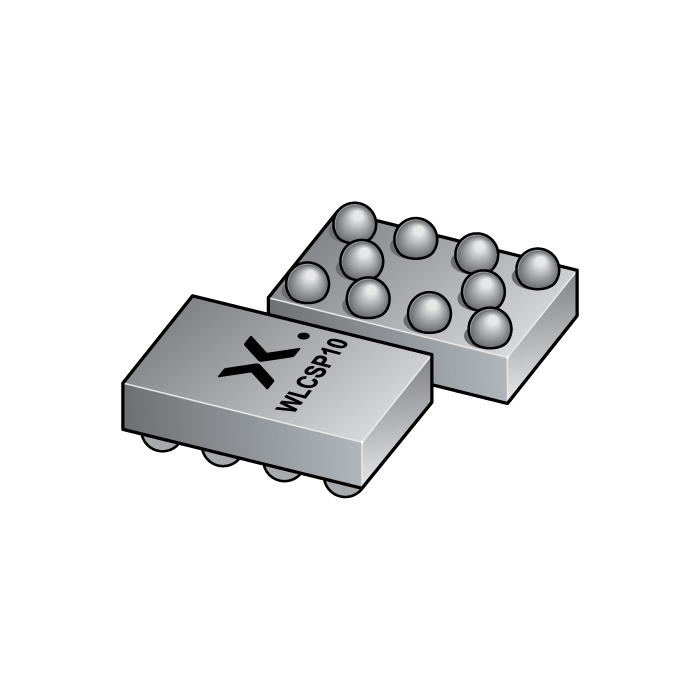

图像仅供参考
请参阅产品规格
-
商品编号:
PESD2USB3B/CZ
-
简述:
ESD protection for differential data lines
-
描述:
ElectroStatic Discharge (ESD) protection for one, two and three differential channels.
The devices are footprint compatible to PCMFxUSB3B/C common mode filters with ESD protection.
Diodes provide protection to downstream components from ESD voltages up to ±20 kV on each signal line.
Table 1. Product overview Type Number
Number of channels
Package name
PESD1USB3B/C
1
WLCSP5 PESD2USB3B/C
2
WLCSP10 PESD3USB3B/C
3
WLCSP15 - 数据手册:
特性
Allows switching between PCMFxUSB3B/C common mode filters with ESD protection and PESDxUSB3B/C ESD protection in the same footprint
TrEOS protection process for very high system-level ESD robustness: superior protection of sensitive Systems on Chips (SoCs)
ESD protection for one, two and three differential channels up to ±20 kV contact discharge according to IEC 61000-4-2
Industry-standard WLCSP5, 10 and 15 packages for smallest footprint
- Bidirectional for audio line option
目标应用
Smartphone, cellular and cordless phone
USB3.2, USB2.0, HDMI2.0, HDMI1.4
General-purpose downstream ESD protection for differential data lines
Tablet PC and Mobile Internet Device (MID)
MIPI D-PHY as used in Camera Serial Interface (CSI) and Display Serial Interface (DSI)
