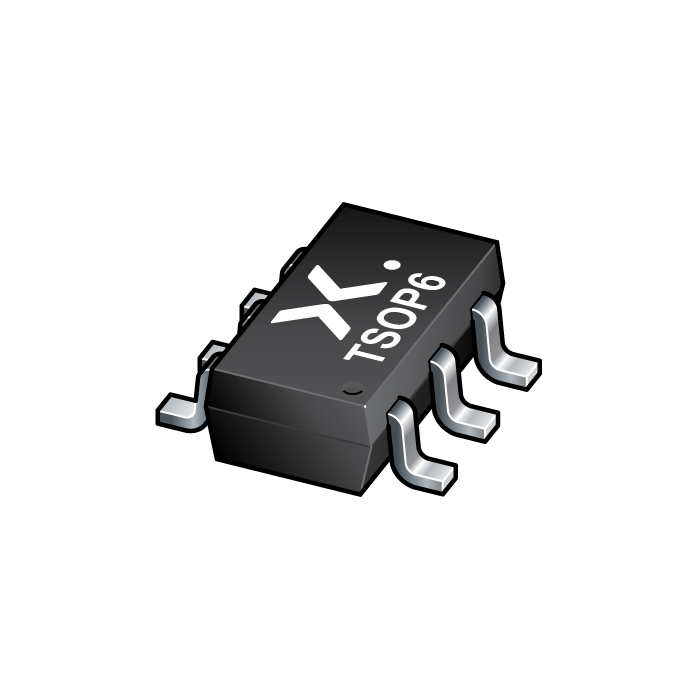

图像仅供参考
请参阅产品规格
-
商品编号:
PESD2ETHD-QX
-
简述:
Q - Ultra low capacitance double rail-to-rail ESD protection diode
-
描述:
Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT457 Surface-Mounted Device (SMD) plastic package. The device is designed to protect two high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients. The device integrates two ultra low capacitance rail-to-rail diodes and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- 数据手册:
特性
ESD protection of two high-speed data lines
Ultra low capacitance: CD = 1.3 pF
ISO 10605 (330 pF, 2 kΩ) up to 15 kV
ESD protection up to 8 kV
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
100BASE-T1 / OPEN Allicance BroadR-Reach automotive Ethernet
Low-Voltage Differential Signaling (LVDS) automotive
USB 2.0 automotive
