商品编号:
PESD2ETH-ADF
-
简述:
to-rail ESD protection diode
-
描述:

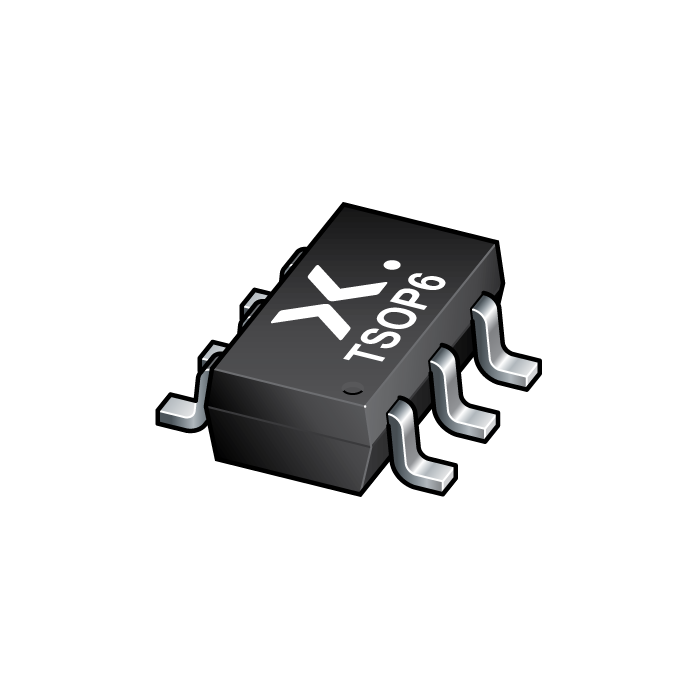

Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT457 Surface-Mounted Device (SMD) plastic package.
The device is designed to protect two high-speed data lines or high frequency signal lines from the damage caused by ESD and other transients.
The device integrates two ultra low capacitance rail-to-rail diodes and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- 数据手册:
特性
ESD protection of two high-speed data lines
ultra low capacitance: CD = 2 pF
ISO 10605 (330 pF, 2 kΩ) up to 23 kV
ESD protection up to 12 kV (IEC61000-4-2)
AEC-Q101 qualified
目标应用
100BASE-T1 / OPEN Alliance BroadR-Reach automotive Ethernet
Low-Voltage Differential Signaling (LVDS) automotive
USB 2.0 automotive
