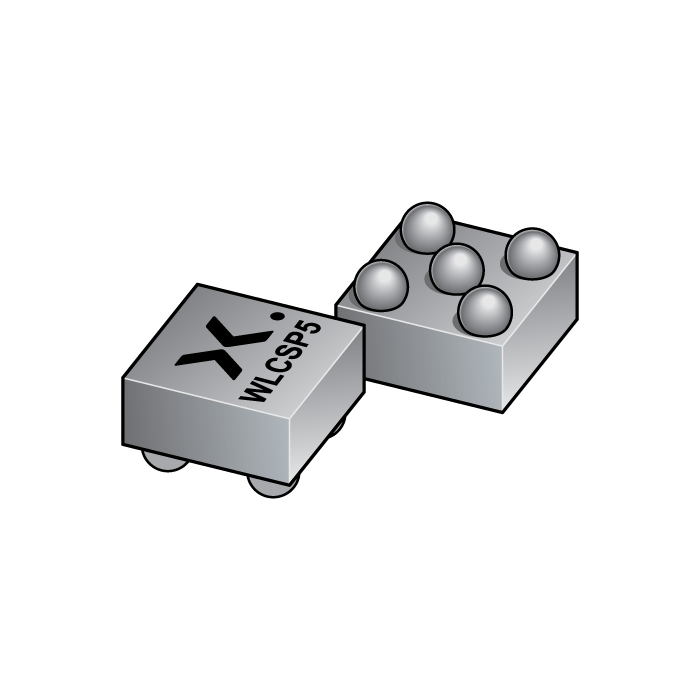

图像仅供参考
请参阅产品规格
-
商品编号:
PESD1USB30Z
-
简述:
ESD protection for differential data lines
-
描述:
PESD1USB30 is an ElectroStatic Discharge (ESD) protection device for one differential channel.
It is footprint compatible to PCMF1USB30 common mode filters with ESD protection.
- 数据手册:
特性
Allows switching between PCMF1USB30 common mode filters with ESD protection and PESD1USB30 ESD protection in the same footprint.
The diodes provide protection to downstream components from ESD voltages up to +/- 15 kV on each signal line.
TrEOS process for very high system-level ESD robustness: superior protection of sensitive Systems on Chips (SoCs).
Industry-standard Wafer-Level Chip Scale package (WLCSP5).
目标应用
Smartphone, cellular and cordless phone
Tablet PC and Mobile Internet Device (MID)
USB3.1, USB2.0, HDMI2.0, HDMI1.4
MIPI D-PHY as used in Camera Serial Interface (CSI) and Display Serial Interface (DSI)
General-purpose downstream ESD protection for differential data lines
