PDTB143EQAZ
-
简述:
50 V, 500 mA PNP resistor-equipped transistors
-
描述:

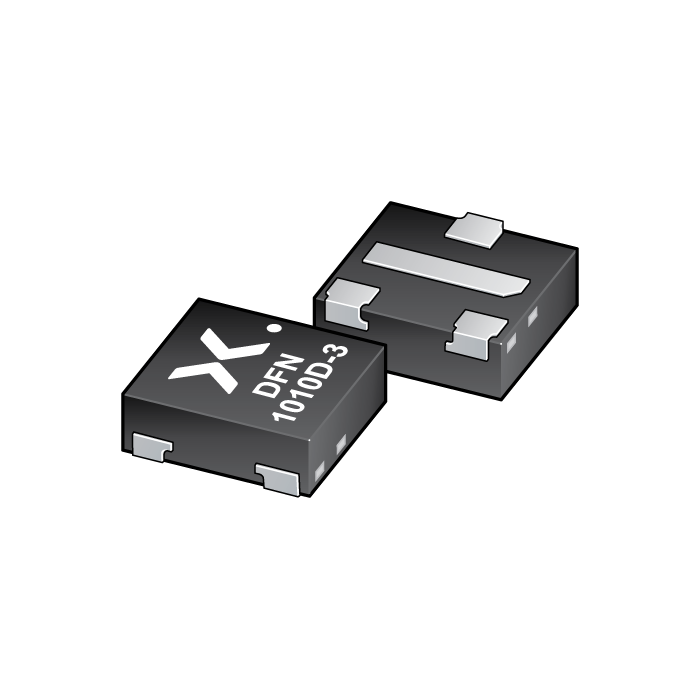

PNP Resistor-Equipped Transistor (RET) family in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Table 1. Product overview Type number
R1
R2
Package Nexperia
NPN complement
PDTB113EQA
1 kΩ
1 kΩ
DFN1010D-3
(SOT1215)
PDTD113EQA
PDTB123EQA
2.2 kΩ
2.2 kΩ
PDTD123EQA
PDTB143EQA
4.7 kΩ
4.7 kΩ
PDTD143EQA
PDTB114EQA
10 kΩ
10 kΩ
PDTD114EQA
- 数据手册:
特性
500 mA output current capability
Built-in bias resistors
± 10% resistor ratio tolerance
Simplifies circuit design
Reduces component count
Reduced pick and place costs
Low package height of 0.37 mm
Suitable for Automatic Optical Inspection (AOI) of solder joint
AEC-Q101 qualified
目标应用
Digital applications
Cost saving alternative for BC807/BC817 series in digital applications
Controlling IC inputs
Switching loads
