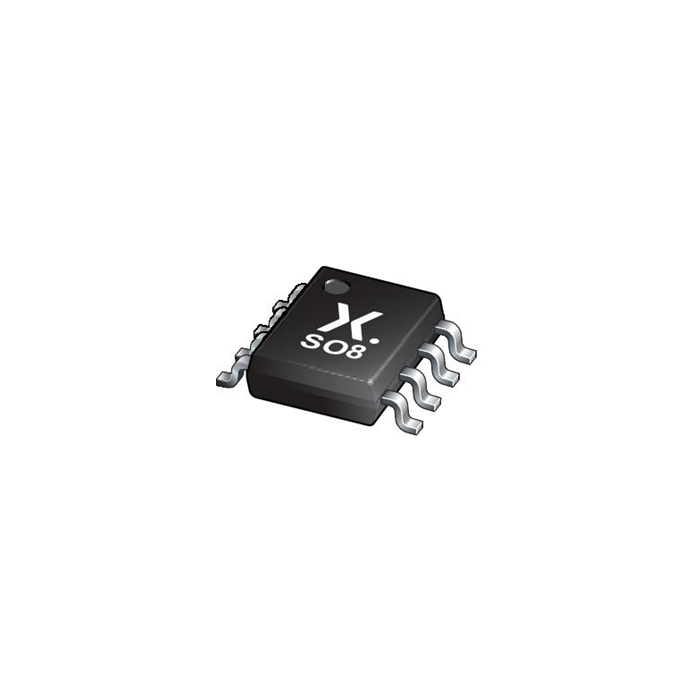

图像仅供参考
请参阅产品规格
-
商品编号:
NEX83288DJ
-
简述:
Transition mode boost Power Factor Correction controller
-
描述:
NEX83288 is a Power Factor Correction (PFC) controller. It supports TM (CrM/DCM) operations.
The device uses ACM-based VOT-control to achieve high power factor and low-current total harmonic distortion (THD) over a wide line voltage. The device features a very low supply current in burst mode. This allows the device to achieve low standby power loss.
The switching frequency near the line voltage zero cross region is reduced by the control method. It improves efficiency.
NEX83288 features overvoltage protection (OVP), cycle-by-cycle (CBC) current limit, open-loop protection (OLP), overtemperature protection (OTP) and brown-in/out.
NEX83288 is available in SO8 package. - 数据手册:
特性
Adaptive variable on time control
Transition mode (CrM/DCM) operations
Support E-mode GaN HEMT direct drive
Line voltage feed forward
Integrated THD enhancement circuit
Integrated dynamic enhancement circuit
Maximum switching frequency clamp to reduce the losses
Valley/zero-voltage switching for minimum switching losses
Rich protections:
VCC UVLO/OVP
Output OVP
Cycle-by-cycle (CBC) current limit
Open-loop protection (OLP)
Overtemperature protection (OTP)
Brown-in/brown-out
Available in SO8 package
目标应用
Monitors or LCD televisions
Personal computer power adapters
USB Power Delivery quick chargers
All off-line appliances requiring power factor correction
