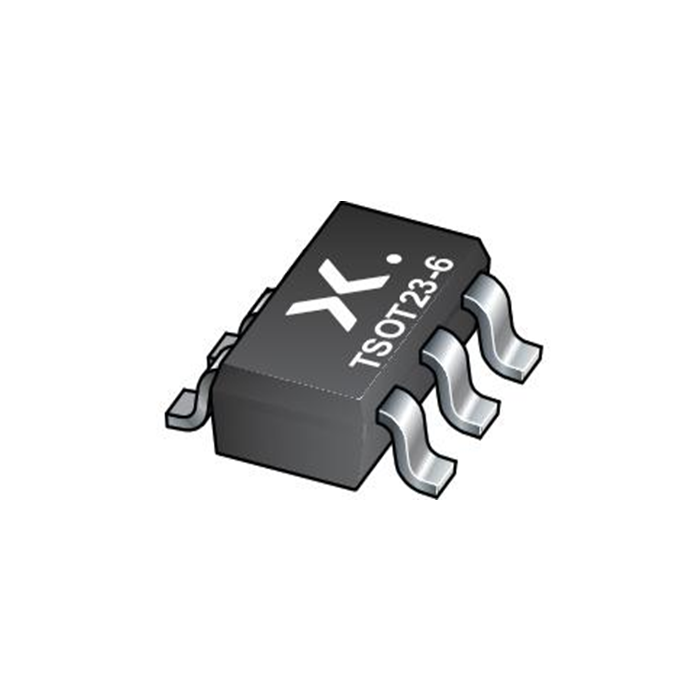

图像仅供参考
请参阅产品规格
-
商品编号:
NEX80808DAZ
-
简述:
Wide supply voltage multi-mode flyback controller, 65 kHz, optimized for 33 W power devices with Over Power Protection (OPP)
-
描述:
The NEX8080 device series (NEX8080x) are intelligent multi-mode PWM controller implemented with peak current mode control. As the load changes, it automatically switches between Continuous Conduction Mode (CCM), Quasi-Resonant (QR) mode, Discontinuous Conduction Mode (DCM) and Pulse Frequency Modulation (PFM) Mode to maintain a high efficiency across the entire load range. To achieve an ultralow standby power, Burst Mode (BM) is implemented in very light load or no-load condition.
The wide 10 V to 83 V VCC range makes NEX8080x devices suitable for wide output voltage range application, such as USB PD/PPS which require an output range between 3.3 V to 21 V.
The NEX8080x offers comprehensive protection including output OV/UV, VCC OV/UV, OPP, OCP, line voltage BROWN-IN/OUT, secondary SR short, CS open/short, internal/external OTP, etc.
Furthermore, the spread spectrum and smart driving function can minimize noise and improve EMI performance.
The NEX8080x device series comes in a cost-effective TSOT23-6 package. - 数据手册:
特性
Wide VCC range (10 V to 83 V) supports PD/PPS
Multimode support CCM/QR/DCM/PFM
Peak Load Mode (NEX80805)
Valley switching operation in QR/DCM/PFM
Burst mode with ultra-low operation current under light load and no load
65 kHz or 85 kHz maximum frequency options
Internal soft start (SST)
Output over voltage protection (OVP)
Spread spectrum for better EMI
Internal over temperature protection (OTP)
External OTP by NTC resistor
VCC over/under voltage protection (VCC OV/UV)
Line voltage brown-in, brown-out (BNI/BNO)
Output short circuit protection (SCP)
CS open/short protection
Secondary rectifier short protection (SRSP)
Overload protection (OLP)
Overpower protection (OPP) to meet LPS
TSOT23-6 package
目标应用
USB PD/QC chargers
AC/DC adapters for portable devices
Auxiliary power for industrial and home equipment
