商品编号:
NEX30606UAZ
-
简述:
1.8 V to 5.0 V, 600 mA, 220 nA ultra-low quiescent current, step-down converter
-
描述:
The NEX30606 is a high-efficiency step-down converter with ultra-low operating quiescent current of typically 220 nA.
The device uses COT control (Constant On Time) to achieve low power consumption mode and fast transient, operates with a switching frequency of 1.5 MHz. At light load conditions, it seamlessly enters Power Save Mode to reduce switching cycles and maintain high efficiency.
Output voltage can be configured by VSET pin. For 1.8 V output, connects the VSET pin to GND. For other output voltages, connects resistor to VSET pin following values in table 5. Sixteen internally set voltages can be selected.
The NEX30606 provides an output current up to 600 mA. With input voltage up to 5.0 V, the devices supports multiple sources such as 2S to 3S Alkaline, 1S Li-MnO2, 1S Li-ion/Li-SOCL2.

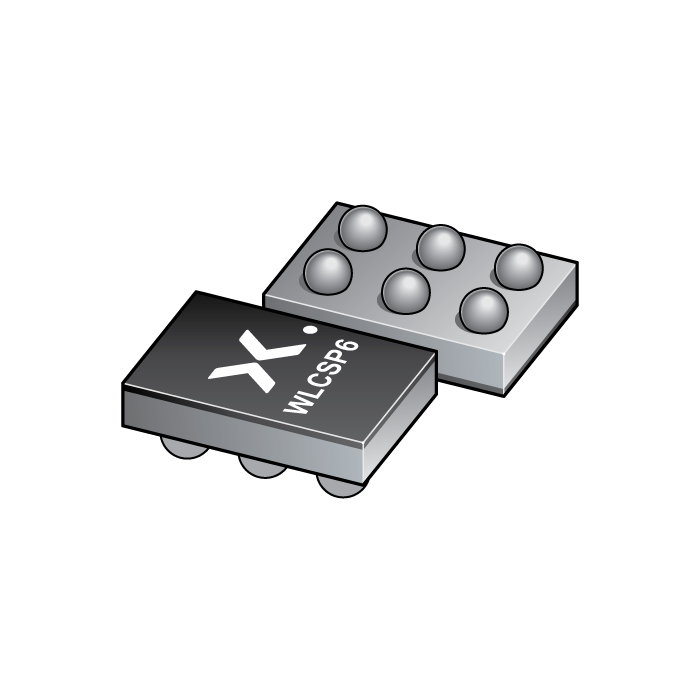

The NEX30606 device series comes in a tiny 6-pin WLCSP package with 0.35-mm pitch.
- 数据手册:
特性
220 nA operating quiescent current
Input voltage range VVIN from 1.8 V to 5.0 V
Output current up to 600 mA
16 selectable fixed output voltages
2% output voltage accuracy
Output discharge
Constant on time control
>90% efficiency at IOUT = 1 mA (VVIN = 3.6 V to VOUT = 1.8 V)
>92.8% efficiency at IOUT = 300 mA (VVIN = 3.6 V to VOUT = 1.8 V)
Pseudo-fixed 1.5 MHz switching frequency
Enable pin
WLCSP6 (SOT8055-1) package option
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C2a exceeds 500 V
Specified from Tj = -40 °C to +85 °C and -40 °C to +125 °C
目标应用
Wearable electronics
Smart meters
Asset tracking device
Medical sensor patches and monitor
Industrial IOT/Narrowband (NB)-IOT
3 x AA battery powered applications
