BZX79 series
图像仅供参考
请参阅产品规格
BZX79 series
-
商品编号:
BZX79-C11,143
-
简述:
Voltage regulator diodes
-
描述:

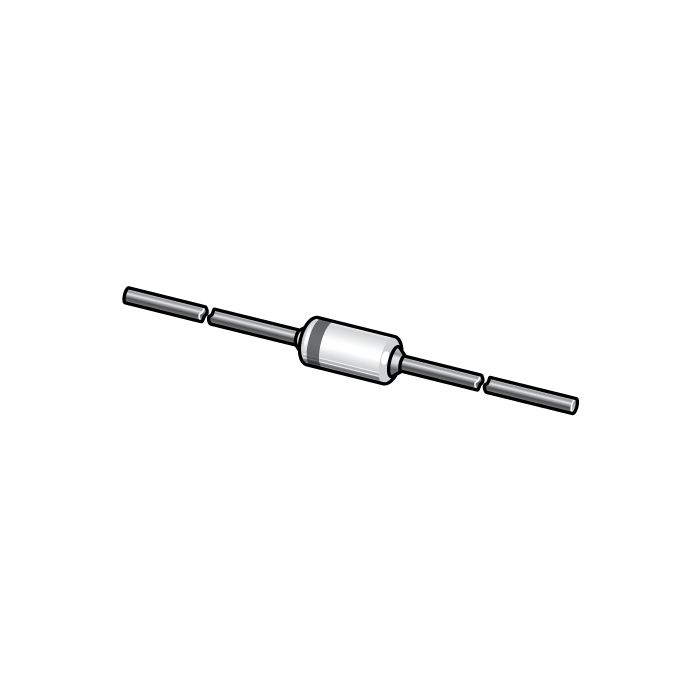

Low-power voltage regulator diodes in hermetically sealed leaded glass SOD27 (DO-35) packages. The diodes are available in the normalized E24 +- 2 pct. (BZX79-B) and approx. +- 5 pct. (BZX79-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V.
- 数据手册:
库存: 99999999
特性
Total power dissipation: max. 500 mW
Two tolerance series: +- 2pct. , and approx. +- 5pct.
Working voltage range: nom. 2.4 to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: max. 40 W.
目标应用
Low voltage stabilizers or voltage references.
