BZV85 series

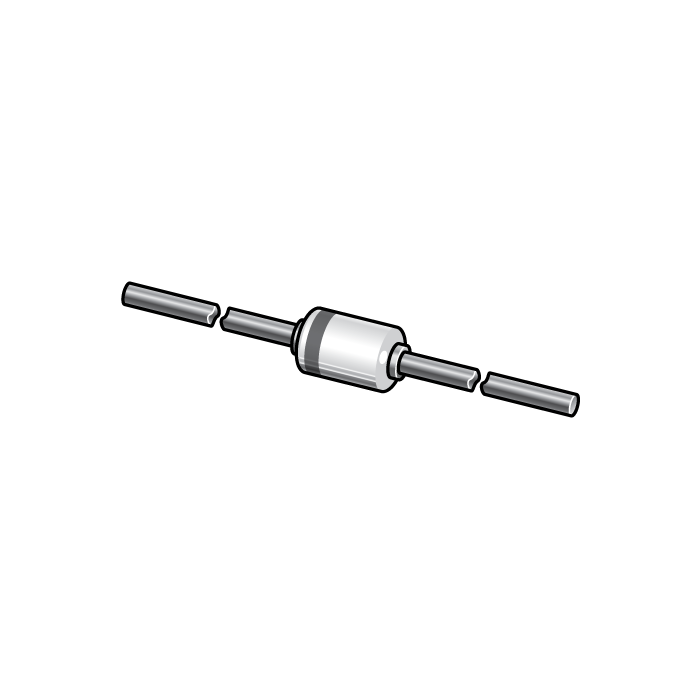

图像仅供参考
请参阅产品规格
BZV85 series
-
商品编号:
BZV85-C11,133
-
简述:
Voltage regulator diodes
-
描述:
Medium-power voltage regulator diodes in small hermetically sealed leaded SOD66 (DO-41) glass packages.
The diodes are available in the normalized E24 approximately ±5 % tolerance range. The series consists of 33 types with nominal working voltages from 3.6 V to 75 V.
- 数据手册:
库存: 0
特性
Total power dissipation: max. 1.3 W
Working voltage range: nominal 3.3 V to 75 V (E24 range)
Small hermetically sealed glass package
Tolerance series: approximately ±5 %
Non-repetitive peak reverse power dissipation: max. 60 W
目标应用
Stabilization purposes
