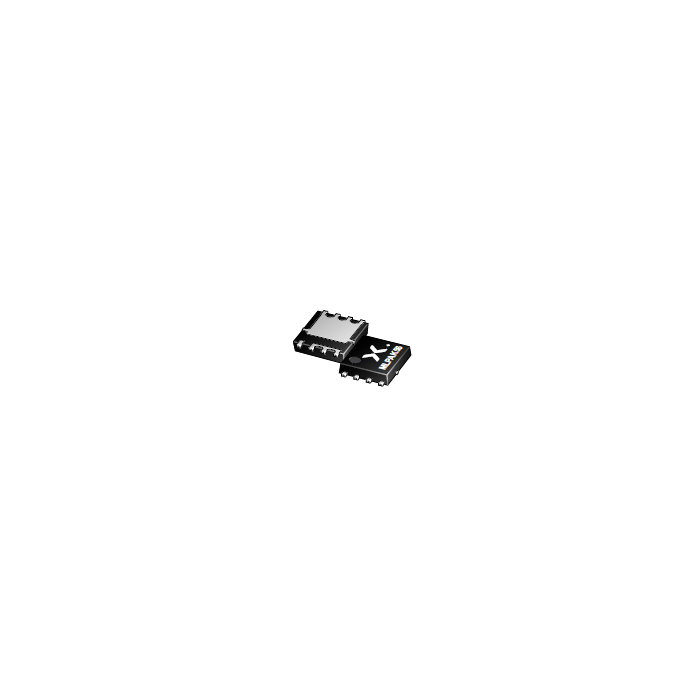

图像仅供参考
请参阅产品规格
-
商品编号:
BUKNS1R4-40MYX8J
-
简述:
40MYX8 - N-channel 40 V, 1.4 mΩ standard level MOSFET in MLPAK56
-
描述:
Automotive qualified N-channel MOSFET using the latest T2-40 low-ohmic split-gate technology, for ultra-low RDS(on) capability, housed in a MLPAK56 (SOT8038) package. This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and reliability.
- 数据手册:
特性
Fully automotive qualified to AEC-Q101:
• 175 °C rating suitable for thermally demanding automotive environments
T2-40 split-gate trench technology:
• Reduced cell-pitch enables enhanced power density resulting in lower conduction losses in same
footprint
MLPAK micro-leads with side-wettable flanks:
• Proven board-level reliability during thermal cycling
• Visual (AOI) soldering inspection, no need for expensive X-ray equipment
• Easy solder wetting for good mechanical solder joint
MLPAK copper clip technology:
• Improved reliability, with reduced Rth, RDS(on), and package inductance
• Increases maximum current capability and improves current spreading
目标应用
• 12 V and 24 V automotive systems
• Motor, lighting, and solenoid control
• Ultra high-performance power switching
