BUK9M15

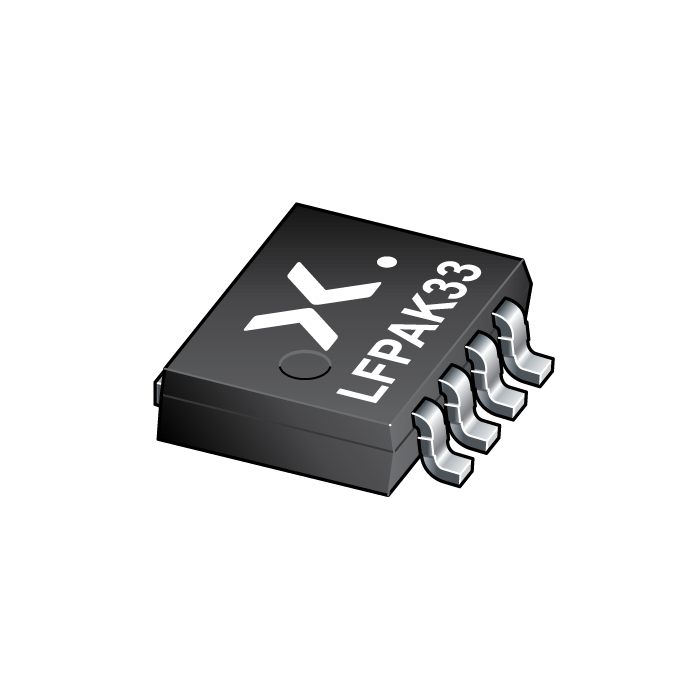

图像仅供参考
请参阅产品规格
BUK9M15
-
商品编号:
BUK9M15-40HX
-
简述:
40H - N-channel 40 V, 15.0 mΩ logic level MOSFET in LFPAK33
-
描述:
Automotive qualified logic level N-channel MOSFET in an LFPAK33 package using Trench 9 TrenchMOS technology. This product has been designed and qualified to AEC-Q101 for use in high performance automotive applications.
- 数据手册:
库存: 99999999
特性
Fully automotive qualified to AEC-Q101 at 175 °C
- Trench 9 superjunction technology:
Low power losses, high power density
- LFPAK copper clip package technology:
High robustness and reliability
Gull wing leads for high manufacturability and AOI
Repetitive avalanche rated
目标应用
12 V automotive systems
Powertrain, chassis, body and infotainment applications
Medium/Low power motor drive
DC-DC systems
LED lighting
