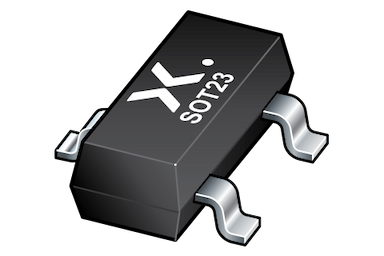

    TLVH431N_FAM
    TLVH431N_FAM

    图像仅供参考

    请参阅产品规格

    • 商品编号:
      TLVH431NAQDBZRVL
    • 简述:
      Adjustable precision shunt regulators
    • 描述:

      Three-terminal shunt regulator family with an output voltage range between Vref = 1.24 V and 14 V, to be set by two external resistors.

      Table 1. Product overview

      Reference voltage

      tolerance (Vref)

      		Package

      Temperature range (Tamb)

      Pinning configuration

      (see Table 5)

      0 °C to 70 °C

      -40 °C to 85 °C

      -40 °C to 125 °C

      1.5 %

      		SOT23

      TLVH431NCDBZR

      TLVH431NIDBZR

      TLVH431NQDBZR

      normal pinning

      TLVH431NMQDBZR

      mirrored pinning

      1.0 %

      TLVH431NACDBZR

      TLVH431NAIDBZR

      TLVH431NAQDBZR

      normal pinning

      TLVH431NAMQDBZR

      mirrored pinning

    • 数据手册:
    库存：99,999,999
    • 数量：
    • 单价:
      ¥0.5850
    • 总价:
      ¥0.0000
    价格（包含13%的增值税）
    数量单价总价
    1¥0.5850¥0.5850
    500¥0.5318¥265.9000
    1000¥0.5065¥506.5000
    3000¥0.4823¥1,446.9000

    特性

    • Programmable output voltage up to 14 V

    • Two different reference voltage tolerances:

      • Standard grade: 1.5 %

      • A-Grade: 1 %

    • Low output noise

    • Typical output impedance: 0.1 Ω

    • Sink current capability: 0.08 mA to 70 mA

    • AEC-Q100 qualified (grade 1)

    目标应用

    • Shunt regulator

    • Precision current limiter

    • Precision constant current sink

    • Isolated feedback loop for Switch Mode Power Supply (SMPS)
