TLVH431NAQDBZRR

购物车

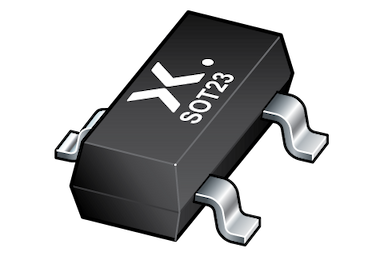

TLVH431N_FAM

图像仅供参考

请参阅产品规格

描述:

Three-terminal shunt regulator family with an output voltage range between V_ref = 1.24 V and 14 V, to be set by two external resistors.

Table 1. Product overview
Reference voltage tolerance (V_ref)	Package	Temperature range (T_amb)			Pinning configuration (see Table 5)
Reference voltage tolerance (V_ref)	Package	0 °C to 70 °C	-40 °C to 85 °C	-40 °C to 125 °C	Pinning configuration (see Table 5)
1.5 %	SOT23	TLVH431NCDBZR	TLVH431NIDBZR	TLVH431NQDBZR	normal pinning
1.5 %		TLVH431NCDBZR	TLVH431NIDBZR	TLVH431NMQDBZR	mirrored pinning
1.0 %		TLVH431NACDBZR	TLVH431NAIDBZR	TLVH431NAQDBZR	normal pinning
1.0 %		TLVH431NACDBZR	TLVH431NAIDBZR	TLVH431NAMQDBZR	mirrored pinning
