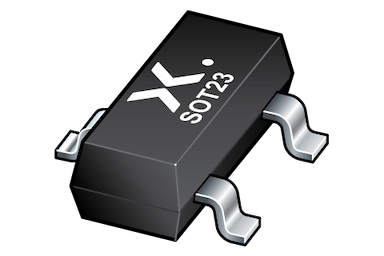

TL431 family

TL431 family

图像仅供参考

请参阅产品规格

商品编号:
TL431BMFDT,215
简述:
Adjustable precision shunt regulator

描述:

Three-terminal shunt regulator family with an output voltage range between

V_ref = 2.495 V and 36 V, to be set by two external resistors.

Reference voltage tolerance (V_ref)	Temperature range (T_amb)			Pinning configuration
Reference voltage tolerance (V_ref)	0 ° C to 70 °C	-40 ° C to 85 °C	-40 ° C to 125 °C	Pinning configuration
2.0 %	TL431CDBZR	TL431IDBZR	TL431QDBZR	normal pinning
			TL431FDT	normal pinning
			TL431MFDT	mirrored pinning
1.0 %	TL431ACDBZR	TL431AIDBZR	TL431AQDBZR	normal pinning
			TL431AFDT	normal pinning
			TL431AMFDT	mirrored pinning
0.5 %	TL431BCDBZR	TL431BIDBZR	TL431BQDBZR	normal pinning
			TL431BFDT	normal pinning
			TL431BMFDT	mirrored pinning

数据手册:
下载数据手册

库存：99,621,999

数量：
单价:
¥0.4862
总价:
¥0.0000

价格（包含13%的增值税）

数量单价总价: 1¥0.4862¥0.4862; 500¥0.4420¥221.0000; 1000¥0.4210¥421.0000; 3000¥0.4009¥1,202.7000

特性

Programmable output voltage up to 36 V
Three different reference voltage tolerances:
- Standard grade: 2 %
- A-Grade: 1 %
- B-Grade: 0.5 %
Typical temperature drift: 9 mV (in a range of 0 °C up to 70 °C)
Low output noise
Typical output impedance: 0.2 Ω
Sink current capability: 1 mA to 100 mA
AEC-Q100 qualified (grade 1)

目标应用

Shunt regulator
Precision current limiter
Precision constant current sink
Isolated feedback loop for Switch Mode Power Supply (SMPS)
