PMXB56EN
分享
图像仅供参考
请参阅产品规格
- 商品编号:PMXB56ENZ
- 简述:30 V, N-channel Trench MOSFET
- 描述:

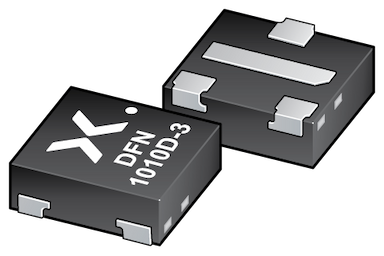

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
- 数据手册:
库存：99,999,999
- 数量：
- 单价:¥0.6381
- 总价:¥0.0000
特性
Trench MOSFET technology
Leadless ultra small and thin SMD plastic package: 1.1 × 1.0 × 0.37 mm
Exposed drain pad for excellent thermal conduction
Very low Drain-Source on-state resistance RDSon = 49 mΩ
Very fast switching
目标应用
Low-side load switch and charging switch for portable devices
Power management in battery-driven portables
LED driver
DC-to-DC converters
