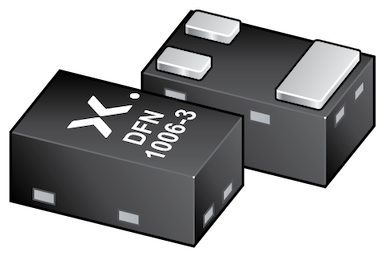

图像仅供参考
请参阅产品规格
- 商品编号:PESD4V0X2UMZ
- 简述:Extremely low capacitance unidirectional ESD protection diode array
- 描述:
Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode array, part of the TrEOS protection family. This device is housed in a DFN1006-3 (SOT883-3) leadless ultra small Surface-Mounted Device (SMD) plastic package designed to protect up to two signal lines from the damage caused by ESD and other transients.
- 数据手册:
- 数量：
- 单价:
¥0.2823¥0.0000
- 总价:¥0.0000
特性
Unidirectional ESD protection of one line pair
VRWM = 4 V device
Extremely high surge robustness of 11.5 A for a 8/20 µs pulse
Extremely low diode capacitance, Cd = 0.82 pF typical
Extremely low clamping voltage to protect sensitive I/Os
ESD protection up to ±20 kV according to IEC 61000-4-2
Leadless ultra small SOT883-3 surface mount package
IEC 61000-4-4 robust up to level 4 for I/O data lines (corresponds to 40 A into a 50 Ohm termination)
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
USB2.0 data lines
