PDTC143X/123J/143Z/114YQA series
分享
图像仅供参考
请参阅产品规格
- 商品编号:PDTC114YQAZ
- 简述:50 V, 100 mA NPN resistor-equipped transistors
- 描述:

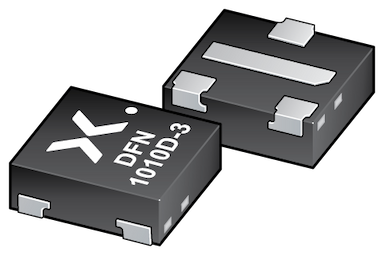

100 mA NPN Resistor-Equipped Transistor (RET) family in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- 数据手册:
库存：98,649,999
- 数量：
- 单价:¥0.2136
- 总价:¥0.0000
价格（包含13%的增值税）
- 数量单价总价
- 1¥0.2136¥0.2136
- 500¥0.1942¥97.1000
- 1000¥0.1849¥184.9000
- 3000¥0.1761¥528.3000
特性
100 mA output current capability
Built-in bias resistors
Simplifies circuit design
Reduces component count
Reduced pick and place costs
Low package height of 0.37 mm
AEC-Q101 qualified
Suitable for Automatic Optical Inspection (AOI) of solder joint
目标应用
Digital applications
Cost saving alternative for BC847/BC857 series in digital applications
Controlling IC inputs
Switching loads
数据手册
