NCR402U
分享

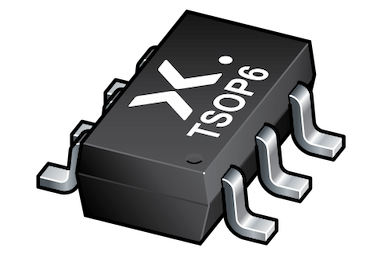

图像仅供参考
请参阅产品规格
- 商品编号:NCR402UH
- 简述:20 mA LED driver in SOT457
- 描述:
LED driver consisting of resistor-equipped PNP transistor with two diodes on one chip in an SOT457 (SC-74) plastic package.
- 数据手册:
库存：3,000
- 数量：
- 单价:¥0.5622
- 总价:¥0.0000
价格（包含13%的增值税）
- 数量单价总价
- 1¥0.5622¥0.5622
- 500¥0.5111¥255.5500
- 1000¥0.4868¥486.8000
- 3000¥0.4636¥1,390.8000
特性
Stabilized output current of 20 mA
High current accuracy at supply voltage variation
Low voltage overhead of 1.4 V
Qualified according to AEC-Q101
Reduces component count and board space
High power dissipation of 750 mW
Stabilized output current adjustable up to 65 mA when an external resistor is used
目标应用
Constant current LED driver
Generic constant current source
Automotive applications
