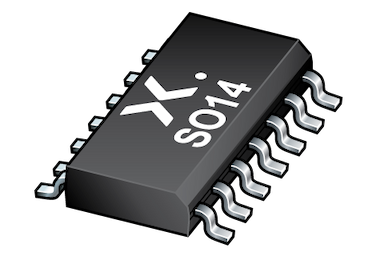

图像仅供参考
请参阅产品规格
- 商品编号:HEF4082BT-Q100J
- 简述:Q100 - Dual 4-input AND gate
- 描述:
The HEF4082B-Q100 is a dual 4-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
- 数据手册:
- 数量：
- 单价:¥1.3041
- 总价:¥0.0000
- 数量单价总价
- 1¥1.3041¥1.3041
- 500¥1.1855¥592.7500
- 1000¥1.1291¥1,129.1000
- 3000¥1.0753¥3,225.9000
特性
Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Wide supply voltage range from 3.0 V to 15.0 V
CMOS low power dissipation
High noise immunity
Standardized symmetrical output characteristics
ESD protection:
MIL-STD-883, method 3015 exceeds 2000 V
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
Complies with JEDEC standard JESD 13-B
