74LVC1G86GX,125

购物车

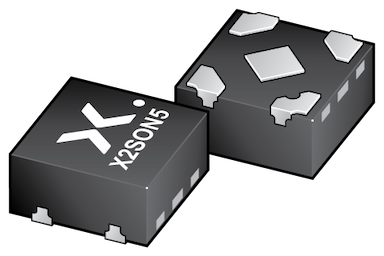

74LVC1G86

限量供应

图像仅供参考

请参阅产品规格

商品编号:
74LVC1G86GX,125
批次:
2323+
简述:
2-input EXCLUSIVE-OR gate
描述:
The 74LVC1G86 provides the 2-input EXCLUSIVE-OR function.
Inputs can be driven from either 3.3 V or 5 V devices. These features allow the use of these devices in a mixed 3.3 V and 5 V environment.
This device is fully specified for partial Power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
数据手册:
下载数据手册

库存：10,000

价格（包含13%的增值税）

数量单价总价: 1¥0.4594¥0.4594; 500¥0.4176¥208.8000; 1000¥0.3977¥397.7000; 3000¥0.3788¥1,136.4000

Wide supply voltage range from 1.65 V to 5.5 V
High noise immunity
Overvoltage tolerant inputs to 5.5 V
Complies with JEDEC standard:
- JESD8-7 (1.65 V to 1.95 V)
- JESD8-5 (2.3 V to 2.7 V)
- JESD8C (2.7 V to 3.6 V)
- JESD36 (4.5 V to 5.5 V)
±24 mA output drive (V_CC = 3.0 V)
CMOS low power dissipation
Latch-up performance exceeds 250 mA
I_OFF circuitry provides partial Power-down mode operation
Direct interface with TTL levels
ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 °C to +85 °C and -40 °C to +125 °C
