74HC4051PW,118

购物车

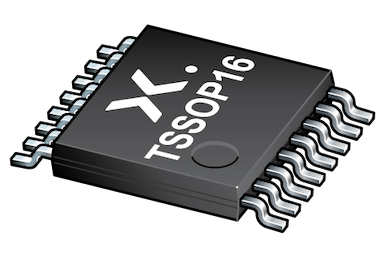

74HC4051

限量供应

图像仅供参考

请参阅产品规格

商品编号:
74HC4051PW,118
批次:
2347+
简述:
8-channel analog multiplexer/demultiplexer
描述:
The 74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
数据手册:
下载数据手册

库存：330,484

价格（包含13%的增值税）

数量单价总价: 1¥0.7756¥0.7756; 500¥0.7050¥352.5000; 1000¥0.6715¥671.5000; 3000¥0.6395¥1,918.5000

Wide analog input voltage range from -5 V to +5 V
CMOS low power dissipation
High noise immunity
Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Low ON resistance:
- 80 Ω (typical) at V_CC - V_EE = 4.5 V
- 70 Ω (typical) at V_CC - V_EE = 6.0 V
- 60 Ω (typical) at V_CC - V_EE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical ‘break before make’ built-in
ESD protection:
- HBM: ANSI/ESDA/Jedec JS-001 Class 2 exceeds 2000 V
- CDM: ANSI/ESDA/Jedec JS-002 Class C3 exceeds 1000 V
Multiple package options
Specified from -40 °C to +85 °C and -40 °C to +125 °C
