    PSMN2R0

    限量供应

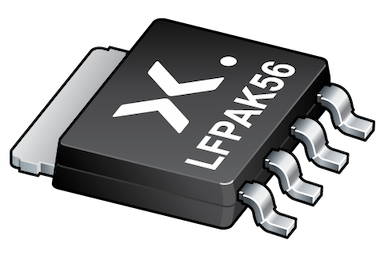

    PSMN2R0

    图像仅供参考

    请参阅产品规格

    • 商品编号:
      PSMN2R0-30YLDX
    • 批次:
      2352+
    • 简述:
      30YLD - N-channel 30 V, 2.0 mΩ logic level MOSFET in LFPAK56 using NextPowerS3 Technology
    • 描述:

      Logic level gate drive N-channel enhancement mode MOSFET in LFPAK56 package. NextPowerS3 portfolio utilising Nexperia's unique “SchottkyPlus” technology delivers high efficiency, low spiking performance usually associated with MOSFETs with an integrated Schottky or Schottky-like diode but without problematic high leakage current. NextPowerS3 is particularly suited to high efficiency applications at high switching frequencies.

    • 数据手册:
    库存：0
    • 数量：
    • 单价:
      ¥2.5652
    • 总价:
      ¥0.0000
    价格（包含13%的增值税）
    数量单价总价
    1¥2.5652¥2.5652
    500¥2.3320¥1,166.0000
    1000¥2.2209¥2,220.9000
    3000¥2.1152¥6,345.6000

    特性

    • Ultra low QG, QGD and QOSS for high system efficiency, especially at higher switching frequencies

    • Superfast switching with soft-recovery; s-factor > 1

    • Low spiking and ringing for low EMI designs

    • Unique “SchottkyPlus” technology; Schottky-like performance with < 1 µA leakage at 25 °C

    • Optimised for 4.5 V gate drive

    • Low parasitic inductance and resistance

    • High reliability clip bonded and solder die attach Power SO8 package; no glue, no wire bonds, qualified to 175 °C

    • Wave solderable; exposed leads for optimal visual solder inspection

    目标应用

    • On-board DC-to-DC solutions for server and telecommunications

    • Secondary-side synchronous rectification in telecommunication applications

    • Voltage regulator modules (VRM)

    • Point-of-Load (POL) modules

    • Power delivery for V-core, ASIC, DDR, GPU, VGA and system components

    • Brushed and brushless motor control

    暂无数据
