PMPB23XNE
分享
图像仅供参考
请参阅产品规格
- 商品编号:PMPB23XNE,115
- 简述:20 V, single N-channel Trench MOSFET
- 描述:

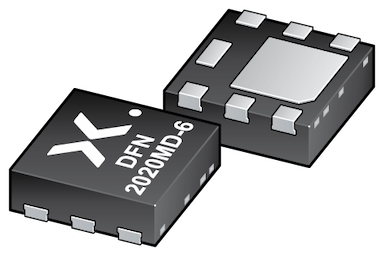

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
- 数据手册:
库存：99,999,999
- 数量：
- 单价:¥0.7739
- 总价:¥0.0000
价格（包含13%的增值税）
- 数量单价总价
- 1¥0.7739¥0.7739
- 500¥0.7035¥351.7500
- 1000¥0.6700¥670.0000
- 3000¥0.6381¥1,914.3000
特性
1 kV ESD protection
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction
Tin-plated, 100% solderable side pads for optical solder inspection
目标应用
Charging switch for portable devices
DC-to-DC converters
Power management in battery-driven portables
Hard disk and computing power management
