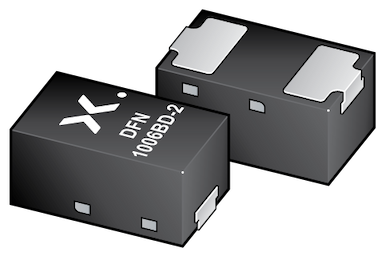

图像仅供参考
请参阅产品规格
- 商品编号:PESD1IVN24-LSYL
- 简述:LS - ESD protection for In-vehicle networks
- 描述:
ESD protection device in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks, designed to protect automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients.
- 数据手册:
- 数量：
- 单价:
¥0.3188¥0.0000
- 总价:¥0.0000
特性
Reverse stand-off voltage: VRWM = 24 V
Low clamping voltage: VCL= 33 V at IPP = 3.5 A
ESD protection up to 30 kV (IEC 61000-4-2)
ESD protection up to 30 kV (ISO 10605: C = 330 pF, R = 330 Ω)
Ultra low leakage current: IRM < 1 nA
Qualified according to AEC-Q101 / Automotive grade
目标应用
ESD protection for In-vehicle network lines in automotive enviroments
CAN
LIN
FlexRay
SENT
