HEF4013BT-Q100J

购物车

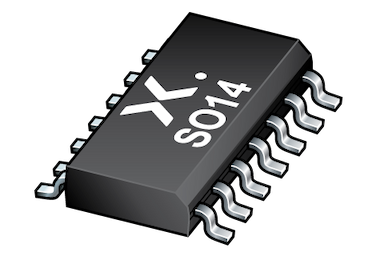

HEF4013B

图像仅供参考

请参阅产品规格

商品编号:
HEF4013BT-Q100J
简述:
Q100 - Dual D-type flip-flop
描述:
The HEF4013B-Q100 is a dual D-type flip-flop with set and reset; positive-edge trigger. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_DD. Schmitt-trigger action on the clock input makes the circuit highly tolerant of slower clock rise and fall times.
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
数据手册:
下载数据手册

库存：0

价格（包含13%的增值税）

数量单价总价: 1¥1.0787¥1.0787; 500¥0.9806¥490.3000; 1000¥0.9339¥933.9000; 3000¥0.8894¥2,668.2000

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 3.0 V to 15.0 V
CMOS low power dissipation
High noise immunity
Tolerant of slow clock rise and fall times
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
ESD protection:
- MIL-STD-883, method 3015 exceeds 2000 V
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
Complies with JEDEC standard JESD 13-B
