HEF40106BTT-Q100J

购物车

HEF40106B

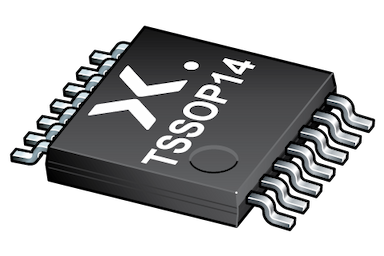

图像仅供参考

请参阅产品规格

商品编号:
HEF40106BTT-Q100J
简述:
Q100 - Hex inverting Schmitt trigger
描述:
The HEF40106B is a hex inverter with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_DD.
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
数据手册:
下载数据手册

库存：99,884,999

价格（包含13%的增值税）

数量单价总价: 1¥1.5810¥1.5810; 500¥1.4373¥718.6500; 1000¥1.3688¥1,368.8000; 3000¥1.3036¥3,910.8000

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 3.0 V to 15.0 V
CMOS low power dissipation
High noise immunity
Schmitt trigger input discrimination
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
ESD protection:
- MIL-STD-833, method 3015 exceeds 2 kV
- HBM JESD22-A114F exceeds 2 kV
- MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
Complies with JEDEC standard JESD 13-B
